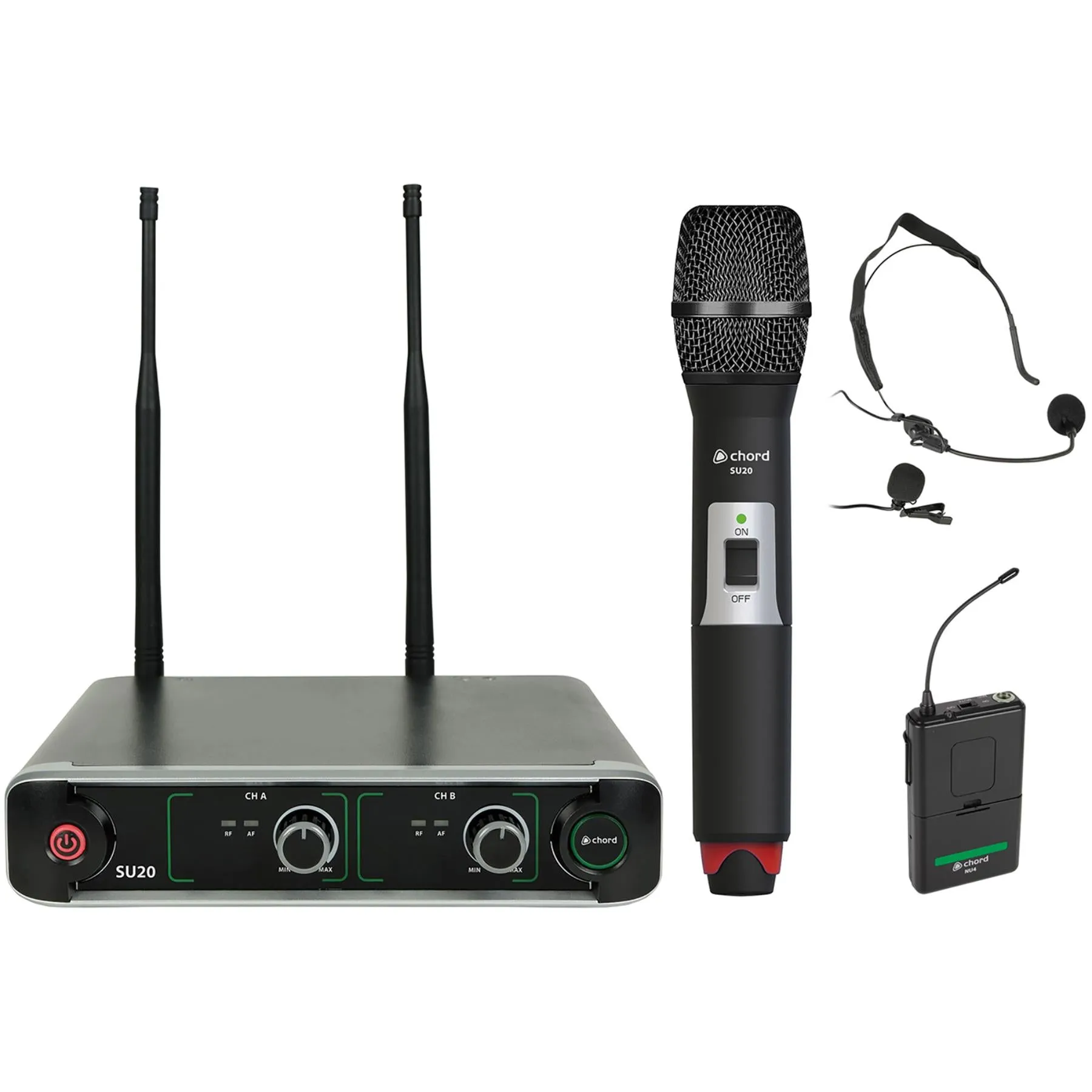

SU20 Compact Dual UHF Microphone Sets
Dual UHF wireless microphone system with a compact receiver, supplied with hardware for mounting 1 or 2 units into a 1U 19" rack space. BNC cables and detachable antennas are provided for rear or front mounting as required. Each transmitter is powered by 2 x AA batteries and the belt pack version is supplied with both neckband and lavalier microphones. Output is provided individually on balanced XLR connectors or mixed to a single 6.3mm jack socket. Providing all the functionality of a dual UHF system in a compact half-rack format.
- Up to 2 sets (4 microphones) can be used together
- Available in handheld or belt pack versions with 2 carrier frequency options
- Front or rear mountable antennas
- Compact half-rack receiver
- Supplied with power adaptor and 4 x AA batteries
- Power supply 14Vdc 350mA (adaptor supplied)
- Antenna connection BNC
- Batteries 4 x AA (2 per transmitter) included
- Range 60m
- Microphone : polar pattern Cardioid (handheld, neckband or lavalier)
- Output connections 2 x balanced XLR, 1 x unbalanced 6.3mm jack
- Output impedance 2.2k Ohms
- Output level 400mV (balanced), 200mV (unbalanced)
- Frequency response 50Hz - 18kHz (±3dB)
- S/N ratio >80dB
- THD <0.5% @ 1kHz
- Dimensions : receiver 203 x 187 x 42mm
- Weight : receiver 845g
